Text Formatting

XTS gives you several ways to format text: XTS commands (<B>, <I>, <U>), HTML markup inside <HTML>, and CSS classes/styles. Use whichever fits your situation.

Bold, italic, underline

The most direct way to switch fonts is with the inline commands:

<PlaceObject>
  <TextBlock>
    <Paragraph>
      <Value>A wonderful </Value>
      <B><Value>serenity</Value></B>
      <Value> has taken possession </Value>
      <I><Value>of my</Value>
        <Value> </Value>
        <B><Value>entire soul,</Value></B>
      </I>
      <Value> like these sweet mornings.</Value>
    </Paragraph>
  </TextBlock>
</PlaceObject>

These commands nest freely – <I><B>...</B></I> gives you bold italic.

HTML markup

If you prefer HTML-style formatting, use <HTML>:

<PlaceObject>
  <TextBlock>
    <Paragraph>
      <HTML>A wonderful <b>serenity</b>
          has taken possession
          <i>of my <b>entire soul,</b></i>
          like these sweet mornings.
      </HTML>
    </Paragraph>
  </TextBlock>
</PlaceObject>

The result is identical. You can also load HTML from your data file:

<HTML select="."/>

with data like:

<data>A wonderful <b>serenity</b> has taken possession
  <i>of my <b>entire soul,</b></i> like these sweet
  mornings.</data>

Tags can be uppercase (<B>) or lowercase (<b>).

Paragraphs and text blocks

<TextBlock> is a rectangular area that holds one or more <Paragraph> elements. Text blocks don’t break across pages – they’re placed as a single unit. For text that breaks between lines and continues in the next frame or on the next page, put the paragraphs into a <Flow> instead. A text block is ideal for:

• Page numbers and headers
• Short descriptions and captions
• Column titles

Each paragraph can have its own class or inline style:

<TextBlock>
  <Paragraph style="color: green">
    <Value>green text</Value>
  </Paragraph>
  <Paragraph>
    <Value>default text</Value>
  </Paragraph>
</TextBlock>

Spans

For inline styling within a paragraph, use <Span>:

<StyleSheet>
    .highlight { color: firebrick; font-weight: bold; }
</StyleSheet>

<Paragraph>
    <Value>Regular text </Value>
    <Span class="highlight">
        <Value>highlighted</Value>
    </Span>
    <Value> and back to regular.</Value>
</Paragraph>

Spans support class, style, and id attributes, just like in HTML. Properties that change the font or the text color work on a span, and so does background-color: the box behind the text is as high as the font and follows the text across line breaks. With position: relative, top moves a span down and bottom moves it up by a fixed amount, without moving the lines or the text around it.

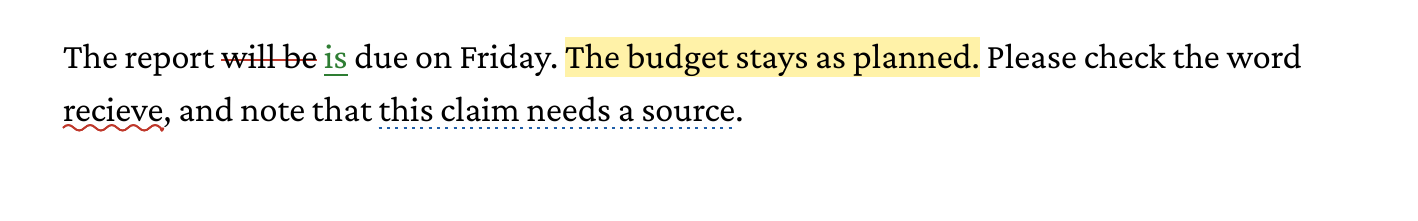

Lines and highlights

text-decoration draws a line under, over or through the text (underline, overline, line-through), in one of the styles solid, double, dotted, dashed and wavy, and in any color. background-color on a span works as a highlighter. <U> and <u> are short for text-decoration: underline; in <HTML>, <s> and <del> are struck through and <ins> is underlined.

<StyleSheet>
    .mark  { background-color: #fff1a8; }
    .del   { text-decoration: line-through #c0392b; }
    .ins   { color: #2e7d32; text-decoration: underline; }
    .spell { text-decoration: underline wavy #c0392b; }
    .query { text-decoration: underline dotted #1f5fa8; }
</StyleSheet>

<Paragraph>
    <Value>The report </Value>
    <Span class="del"><Value>will be</Value></Span>
    <Value> </Value>
    <Span class="ins"><Value>is</Value></Span>
    <Value> due on Friday. </Value>
    <Span class="mark"><Value>The budget stays as planned.</Value></Span>
    ...
</Paragraph>

Without a color the line takes the text color of the element that declares the decoration. It underlines the spaces between the words but stops at the last letter of each line, so it is not drawn out into the margin. The how-to Highlight and mark up text on boxesandglue.dev covers the details; they hold for XTS as well.

Trimming a paragraph to its text

A paragraph’s box holds more than its letters: half of the leading above the first line and below the last, and the room the font keeps for its tallest ascenders and deepest descenders. In a paragraph with a background and padding the text then looks lower than it is. text-box-trim: trim-both takes that space off, down to the ascent of the font at the top and its descent at the bottom; trim-start and trim-end trim one side only.

<StyleSheet>
    .note { background-color: #e0ecf8; padding: 3mm; text-box-trim: trim-both; }
</StyleSheet>

The property is not inherited. On a block that holds its own lines, a <Paragraph> or a <p> or heading in <HTML>, it trims that block’s first and last line. On a <div> around paragraphs or on a table cell it trims the first line of the first block inside and the last line of the last one, unless padding or a border on that block lies between.

Split across pages, a paragraph is trimmed only at its start and its end. With box-decoration-break: clone it is trimmed at every break, and -bag-text-box-trim-at-break: trim-end lets the last line before a page or frame break fit by its text without trimming anything else. Lines and leading on boxesandglue.dev explains the text edges and the behavior across pages.

Line breaks

Force a line break with <Br/>:

<Paragraph>
    <Value>First line</Value>
    <Br/>
    <Value>Second line</Value>
</Paragraph>

Alignment and spacing

text-align sets how the lines of a paragraph are aligned. The default is start, which is left for left-to-right text.

• With left, right, center, start or end the text is ragged: every line is set at its natural width, the word spaces keep their size, and a word that does not fit moves to the next line.
• With justify the word spaces stretch and shrink so that every line but the last fills the measure. Only justified text uses the font expansion (-bag-font-expansion), which widens or narrows the glyphs a little to even out the spaces.

<StyleSheet>
    .body { text-align: justify; hyphens: auto; }
    .caption { text-align: center; }
</StyleSheet>

letter-spacing adds space after every character, the spaces between words included, so a letter-spaced line keeps its words apart. For headings in capitals, a small value such as 0.05em is common.

-bag-horizontal-scale draws the glyphs narrower or wider by a fixed factor, given as a percentage or a number (90% or 0.9). The line breaker sees the scaled width, so more text fits on a line. The value is inherited but does not compound: 100% inside a scaled element returns to normal width.

<Paragraph style="-bag-horizontal-scale: 90%">
    <Value>A long product name that should fit on one line</Value>
</Paragraph>

All text properties are listed in the CSS reference.

CSS styling

All text elements support CSS styling via classes and inline styles. See CSS and HTML for the full story.
